ROS(MikroTik RouterOS)自动设置校准/同步系统时间

NTP 是网络时间协议(Network Time Protocol),它用来同步网络设备【如计算机、手机】的时间的协议。为我们提供准确时间。因为我们的手表、手机、电脑等设备,经常会跑着跑着时间就出现了误差,或快或慢的少几秒,时间长了甚至误差过分钟。对于ROS来讲当你的ROS服务器主板电池没电或断电时间错误时,可能会比较需要这个脚本,用来从网络上校准系统时间。

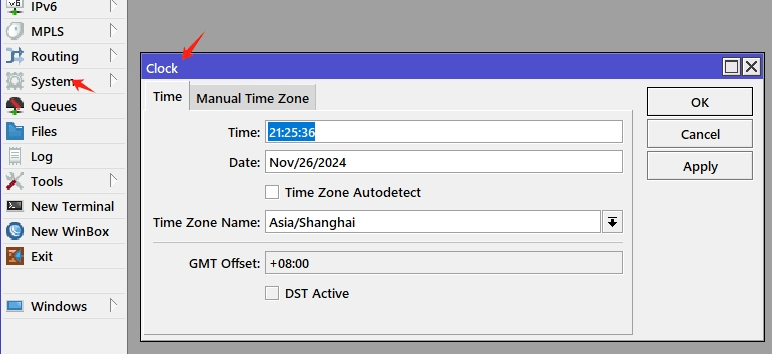

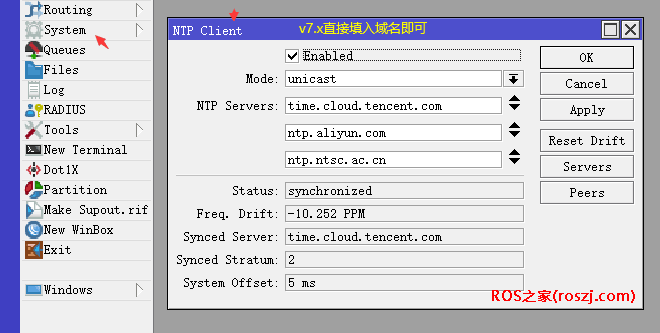

winbox设置菜单(v6.x):system-sntp client
sntpclient

脚本:

/system clock set time-zone-name=Asia/Shanghai
:global ntpipnewp ([:resolve ntp.aliyun.com])
/system ntp client set primary-ntp=$ntpipnewp
:global ntpipnews ([:resolve time1.cloud.tencent.com])
/system ntp client set secondary-ntp=$ntpipnews

适合国内的NTP服务器:

*Windows上自带的2个:

time.windows.com
time.nist.gov

*MacOS上自带的2个:

time.apple.com
time.asia.apple.com

*阿里云的NTP服务器:

ntp1.aliyun.com
ntp2.aliyun.com
ntp3.aliyun.com
ntp4.aliyun.com
ntp5.aliyun.com
ntp6.aliyun.com
ntp7.aliyun.com

*腾讯云的NTP服务器:

time1.cloud.tencent.com
time2.cloud.tencent.com
time3.cloud.tencent.com
time4.cloud.tencent.com
time5.cloud.tencent.com

每月通过域名更新一次ntp server。v6.x导出

/sys scheduler remove ntp-server-update
/system scheduler
add interval=4w2d name=ntp-server-update on-event="/system clock set time-zone-name=Asia/Shanghai\r\
    \n/system ntp client set enabled=yes primary-ntp=120.25.115.20 secondary-ntp=203.107.6.88\r\
    \n:global ntpipnewp ([:resolve ntp.aliyun.com]) \r\
    \n/system ntp client set primary-ntp=\$ntpipnewp\r\
    \n:global ntpipnews ([:resolve time1.cloud.tencent.com]) \r\
    \n/system ntp client set secondary-ntp=\$ntpipnews\r\
    \n" start-date=jan/01/1990 \
    start-time=03:00:00
